Products

Rockmore International

Rockmore International

Rockmore International

DTH-Bits

ROK DTH Hammers

Top Hammer Bits

Top Hammer Couplings

Top Hammer Drill Steel

DTH Shanks/Striking Bars

Fluids, Greases & Oils

Rockmore International

Rockmore International

Drilling Fluids

Drilling Greases

Drilling Oils

HDD Fluids



Geostabilization

Rockmore International

Geostabilization

Hollow Bar

Micropile Casing

Foundation Bracket

Grout Swivels

Spinners



Rotary Tooling

Rotary Tooling

Geostabilization

Augers

Drag Bits

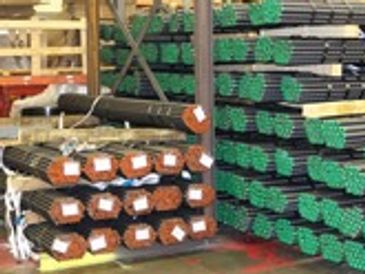

Drill Pipe

Drilling Adapters (Subs)

Rod Wipers

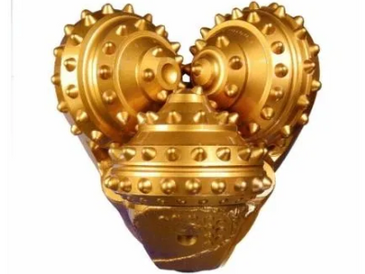

Roller Cone Bits

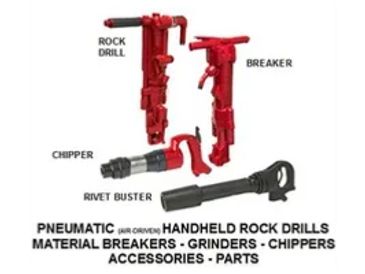

Air Tools

Rotary Tooling

Air Tools

Chipping Hammers

Hand Rock Drill

Jackhammers /

Pavement Breakers

Rivet Busters

Drilling Fluids

DD-Xpand

ES Thread Compound

DD-Xpress

DD-Xpand (Coarse) can be used as

  • a plug/pill application to shut off water flows and voids.
  • allows drilling through highly fissured and fractured formations.


DD-Xpand (Fine) can be used

  • while drilling to assist in minimizing water loss.


Product Information Video

Spec Sheet

DD-Xpress

ES Thread Compound

DD-Xpress

  • hole stabilization
  • superior lubrication
  • clay inhibitor
  • improved core recovery
  • faster pentration







Spec Sheet

ES Thread Compound

ES Thread Compound

ES Thread Compound

Unique formulation provides excellent protection against

  • thread wear
  • galling and seizing for tool joints
  • drill collars
  • rotary shouldered connections.






Spec Sheet

Fluid Injector

Fluid Injector

ES Thread Compound

Air operated and time activated, completely self-contained and easy to install.


It can be used to inject a wide range of different products such as:

  • Tri-lube
  • RDO-302 ES
  • Hole Control
  • Liquid Polymers
  • Foam
  • etc.


If injecting foam, a Matex soluble lubricant must be used to avoid rust that could be caused from the foam.


Product Unboxing video

Product Instructional Video

Product Tutorial Video

Foamer ES

Fluid Injector

Form Release

A high performance, but economical foam formulated for the cost-conscious driller.

  • It provides a tight lather like a foam with a better than average half-life.
  • non alcohol-based foam used for diamond and rotary drilling.

An environmentally acceptable foaming agent to be used in

  • mineral exploration
  • oil and gas exploration
  • water well drilling operations.


Gives an immediate tight foam with good lifting characteristics.


Product information Video

Spec Sheet

Form Release

Fluid Injector

Form Release

Greenplus Form Release is an environmentally safe form release designed for use with

  • metal
  • wood
  • plastic
  • and fiberglass forms

Greenplus Form Release is:

  • free of solvents and petroleum oils.
  • can be used as a non-irritation, non-staining spray.
  • gives an excellent quality concrete surface.
  • has a high flash point (280 degrees Celsius/ 536 degree Fahrenheit)

Applied neatly by spraying, brushing, or swabbing.

Spec Sheet

Hole Control

One Shot Plus

Hole Control

  • Can be used with air-rotary tri-cone, down the hole hammers and all types of top hammer drills (surface and underground).
  • reduces re-drills.
  • eliminates regrinding of cuttings, thus creating bigger chips for sampling purposes.
  • leaves a sticky, neatly stacked cuttings pile that is not prone to sloughing prior to loading the hole.
  • acts as a dust suppressant and reduces wind-blown fines.
  • allows blast holes to be fully loaded, helping to optimize blasting operations.
  • works great with the Matex Fluid Injector!


Product use video

Product in use video

Spec Sheet

Lubricator

One Shot Plus

Hole Control

  • The Matex Lubricator is air operated and time activated.
  • The Matex Lubricator is completely self-contained and easy to install.
  • The Matex Lubricator can be used to inject a wide range of different products such as Tri-Lube, RDO-302 ES, Foam, and others.
  • The pump is designed to deliver a measured amount of product each injection to ensure a proper mixture.
  • The pump has also been designed with only one moving part to ensure low maintenance.
  • The timer is also available with a setting dial on the face of the timer for ease of increasing and decreasing the amount of product necessary, or timer can be preset for lubricating at a set rate.

One Shot Plus

One Shot Plus

One Shot Plus

A unique DSPA providing a drilling fluid capable of stabilizaing the most difficult sand and gravel conditions.


Assists in inhibiting the swelling of clay-like materials such as saprolites, talcs & kimberlites which in turn, eliminates bit-balling.


It is a superior product for borehole stabilization and encapsulation of solids.












Spec Sheet

Drilling Greases

Thread Grease

PRODUCT CHARACTERISTICS

  • Color: Copper
  • Penetration: 320-340 (ASTM D217)
  • NLGI GRADE: 1
  • Weight/Gallon: 10.2 pounds/gallon
  • Thickener: Calcium
  • Fluid Type: Petroleum
  • Dropping Point: ≥300°F (≥149°C) (ATSM D2265)
  • Flash Point: ≥325°F (≥162.8°C)
  • Service Rating: 400°F (204°C)
  • Friction Factor: 1.0*
  • Contains: Copper, graphite, and other non-metallic additives




Thread Lube

Thread Lube

BestoLife Cal Bronze (CB) is an all-purpose compound for rotary-shouldered connections, casing, and tubing. A copper/lead/zinc based compound, Cal Bronze is recommended for drill collars in light to medium duty drilling, drill pipes, and casing and tubing connections that require a thread compound for high temperature/high pressure conditions.


Economical copper compound for use on drill collars and drill pipe.


Cal Bronze Safety Data Sheet

Cal Bronze Technical Data Sheet

Dope Brush

Thread Lube

  • 12" or 36" Dope Brushes
  • Standard #2 Bristles design for uniform application
  • Plastic hand guards on 12" model
  • Packaged 12 per case
  • 36" Handled brush available for HDD application







Primrose Tube Grease

  • Armor Plate Construction & Industrial grade grease is entirely unique due to the fact that the moly in it is a compound which provides superior performance to other greases containing the black form of moly (molybdenum disulfide)
  • This grease is especially recommended for heavy duty applications in construction and mining equipment in temperatures or operating conditions above freezing
  • For temperatures below freezing or extremely cold temperatures 327 Armor Plate with Moly-D in No. 2 and No. 1 grades is recommended

Drilling Oils

Hydraulic Fluid

RDO 302 ES (Soluble)

Hydraulic Fluid

Greenplus Hydraulic Fluid has high performance lubrication properties which result in significantly less wear on your equipment’s hydraulic components.


Greenplus Hydraulic Fluid is not just rapidly biodegradable and operator-safe and made from renewable resources, but it is also environmentally safe. When an accidental spill occurs, the risk to the environment is reduced, risk of liability is minimized and negative media coverage can be avoided.


Greenplus Hydraulic Fluid base stock is made from vegetable oils with a very high natural viscosity index.

RDO 302 ES

RDO 302 ES (Soluble)

Hydraulic Fluid

RDO 302 ES is a unique product developed for all types of drilling where rock drill oils are used, such as DTH, air tracks, percussion drills, casing drivers, and top hammers to save wear and improve their performance.


RDO 302 ES reduces the potential of surface or groundwater environmental damage during mining production, mineral exploration, construction of roads and pipelines, quarrying, water well drilling, and oil and gas exploration.


RDO 302 ES has proprietary lubricating compounds that are not washed off by moisture, thus offering protection when drilling with water. Rust does not develop on internal parts when the hammer is not used.


Product Video

Spec Sheet

RDO 302 ES (Soluble)

RDO 302 ES (Soluble)

RDO 302 ES (Soluble)

RDO 302 ES (SOL) reduces the potential of surface or groundwater environmental damage during mining production, mineral exploration, construction of roads and pipelines, quarrying, water well drilling, and oil and gas exploration.


RDO 302 ES (SOL) has proprietary lubricating compounds that are not washed off by moisture, thus offering protection when drilling with water.  Rust does not develop on internal parts when the hammer is not used. Lubrication can be better controlled and consumption reduced by using RDO 302 ES.


RDO 302 ES (SOL) has a special filming additive that prevents piston scuffing and heat build up. Purchase of internal hammer parts is reduced dramatically.


Spec Sheet

HDD Fluids

Information on HDD Fluids by MATEX


How to mix Matex products and in which order for best results.


Clay Break HDD

Gravel Stop HDD

Gravel Stop HDD

Drilling Fluid Thinner

Clay Break drilling fluids thinner is an environmentally safe, synthetic organic liquid polymer which lowers mud viscosity and gel strengths of all conventional water based drilling muds.


Clay Break also aids in filtration control and can be used to overcome differential sticking of rods as well as treating mud rings.


Clay break best followed with Torqueless to prevent re-establishment of bit balling and mud rings.

Spec Sheet

Gravel Stop HDD

Gravel Stop HDD

Gravel Stop HDD

Gravel Stop is an environmentally safe, very high molecular weight, powdered viscosifier that can be used in either fresh or brine water. It is used consistently in HDD drilling.


Gravel Stop is effective in drilling conditions where groundwater temperatures exceed 150°F.


Gravel Stop is the preferred mix in winter conditions (powder).


Gravel Stop reduces DTH Torque due to its excellent holding power.

Spec Sheet

Hole Coat HDD

Gravel Stop HDD

Hole Coat HDD

Hole Coat is used to coat your bore hole.


Hole Coat is a highly concentrated product that rapidly develops into a very high viscosity fluid when mixed with water.


Hole Coat provides viscosity yields 40-50% greater than conventional liquid polymers, and can be used in fresh or brine water.


Hole Coat is an excellent inhibitor against shales, clays, fractured zones, sand and blocky formations, and contaminants.




Spec Sheet

One Shot HDD

One Shot HDD

Hole Coat HDD

One Shot is an all dry powder polymer with triple action to cover most drilling problems.  This product is specially formulated to respond to clay, sand and unconsolidated geological formations.  This product increases viscosity and imparts excellent stabilization and fluid loss properties.


One Shot increases the meters drilled per shift.


One Shot has effectively stopped water sands from collapsing into the bore hole.


One Shot works with Torqueless and does not require a complicated multi-component mud system.

Spec Sheet

Sand Drill

One Shot HDD

Sand-Xpress

Suggested dosage:


Sand Drill should always be premixed with Torqueless. (recommended ratio: 1 part Sand Drill to 2 parts Torqueless.)


The Sand Drill premix is then introduced in the mixing system with water.


1-3 liters Sand Drill per 1000 liters of water


1-3 quarts Sand Drill per 250 gallons of water.






Video using Sand Drill and Torqueless

Sand-Xpress

One Shot HDD

Sand-Xpress

A DSPA providing a drilling fluid capable of stabilizing and maximizing the encapsulation of core recovery in the most difficult sand and gravel conditions.

  • imparts excellent viscosity yield.
  • eliminates the need to use Benonite, thus reducing disposal problems and immense transportation costs.
  • reduces the need of casing in most unconsolidated formations.
  • builds a matrix tying shifting sands and gravels together.
  • enhances both bit-life and penetration rates during drilling operations.
